Linghunt - B2409-05 Adapter 5/16"-24 Female x 6mm-1 Female

Stainless Steel Adapter: [ 1/2" OD, 5/16"-24 Female x 6mm-1 Female ]

Price : $15.00

The 1/2" diameter adapters are typically used on pole spears to mate up different manufacturer spear tip products.

The 1/2" diameter adapters are typically used on pole spears and other manufacturer spear tips.
5/16"-24 Female
6mm-1 Female
Stainless Steel Round Bar, Flats for 7/16" Wrench
Typically used to mount a 5/16 rod shaft. Threads are offset in the hole for added strength.
Can be used for other application as well

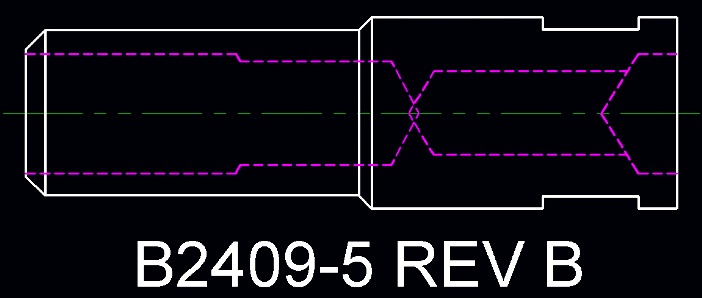

B2409-5 Rev B - note Rev A version at bottom of page for reference.
Rev B adds a deeper bore for added stability and axial alignment for 5/16" male shaft.
Profile of Hole details will be added.

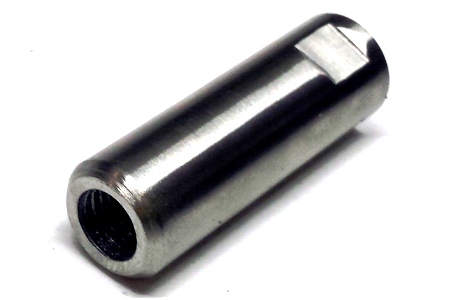

Here is REV A of this part, I made a few changes to enhance the part. I don't typically add this information, But sold a lot of them and if old buyers come back, wanted a foot note to show changes.

ECO: Longer Body, deeper counter bore for better axial alignment, Shift flats to backside, Chamfer Front side

ECO = Engineering Change Order.

Questions: ( john@linghunt.com ) [ 707-477-0869 ] PST , give me a call - drop a note.
